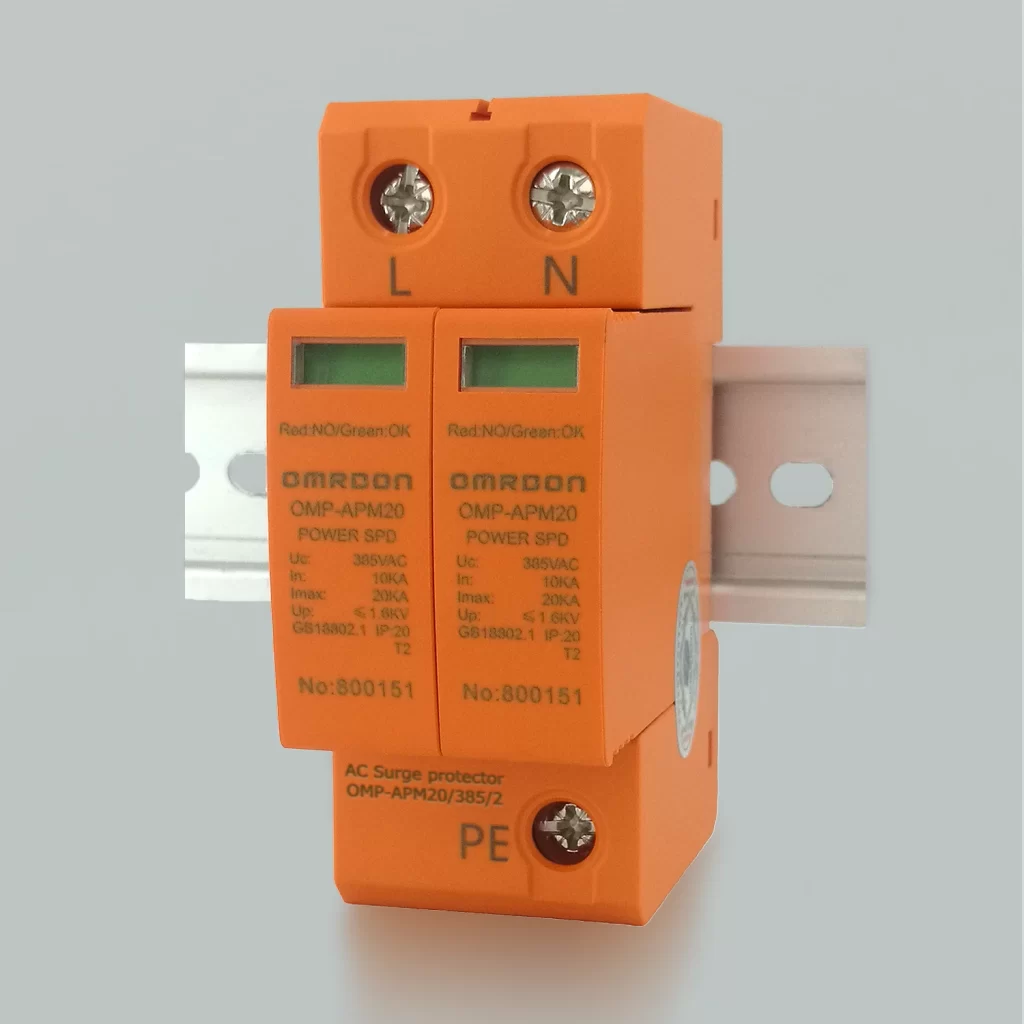

OMP-APM20 Power Surge Protector, 20KA Surge Protector, Three Level Power Supply Level Surge Protector
Product Description:
OMRDON (OMRDON) Class III Surge Protection Device (Surge Protection Device, referred to as SPD) (also known as power supply lightning protector, power supply lightning arrester, surge protector, overvoltage protector), which is designed based on compliance with the GB18802.1, IEC61643-1 technical standards; applicable to AC 380V (50Hz/60Hz) and the following TN-S, TN-C-S, TT, IT and other power supply line system of lightning electromagnetic pulse (LEMP) protection, for lightning strike area of the LPZ 2-3 area or higher interface.
The product adopts shielded shell package, built-in high quality high-speed over-voltage protection devices, the power line induction of lightning high-voltage pulse has a highly efficient protection and defense function.
Functional Features::
Optional telecommunication terminal alarm function, easy to remote alarm monitoring
Withstand up to 10KA (8/20μs) lightning current shock.
Fast reaction speed, action response time is less than 25ns.
Flame retardant housing designed for easy installation on 35mm electrical rails.
Built-in thermal release failure disengagement device, so that the protector can be automatically disconnected when it fails due to overheating or breakdown.
Original imported products
typical application::
network room
rapid transit
Wind power systems
Technical Parameters
Name
surge protector
SPD type
pressure-limited
Experimental level
Class III
Model
OMP-APM20/275
OMP-APM20/320
OMP-APM20/385
OMP-APM20/420
item number
800149
800150
800151
800152
protected mode
L-PE N-PE
Rated Working Voltage
220V~380V
Maximum continuous operating voltage (Uc)
275VAC
320VAC
385VAC
420VAC
350VDC
450VDC
505VDC
560VDC
Voltage protection level Up (8/20μs)
≤1.1KV
≤1.2KV
≤1.5KV
≤1.6KV
Nominal discharge current (In) (8/20μs)
10KA
Maximum discharge current (Imax) (8/20μs)
20KA
response time
25ns
Size
72*90*65mm(4P),36*90*66mm(2P),18*90*66mm(1P)
Backup Protector Selection
D type 16A-25A
Connection wire cross-section (L/N)
≥6mm²
Connection to grounding conductor cross-section (PE)
≥10mm²
working environment
-40℃~+85℃
relative humidity
≤95%
Installation
35mm standard electrical rail
Housing Material
Reinforced flame retardant PBT
Test basis
GB18802.11、IEC61643-11

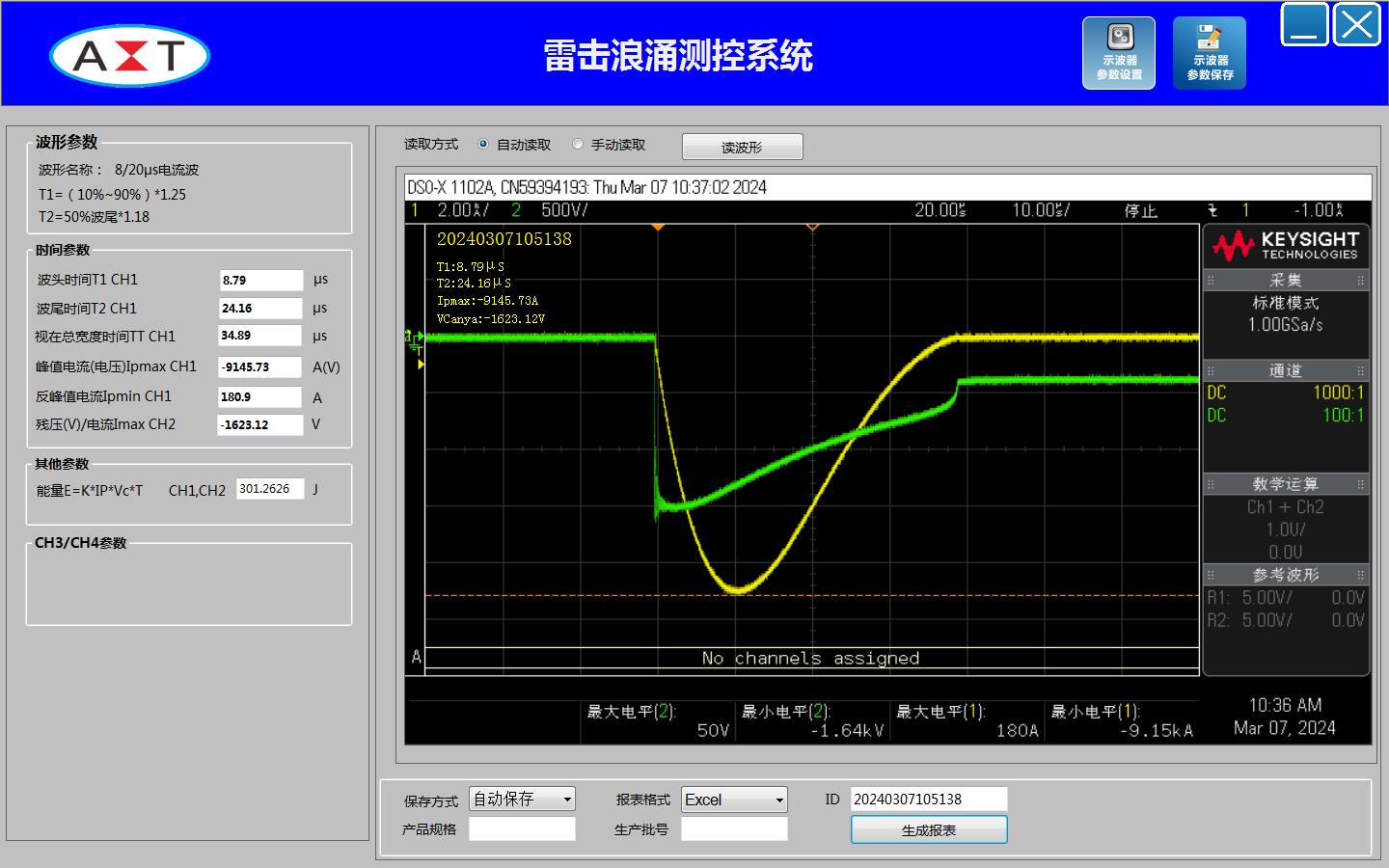

Typical Performance Test Data

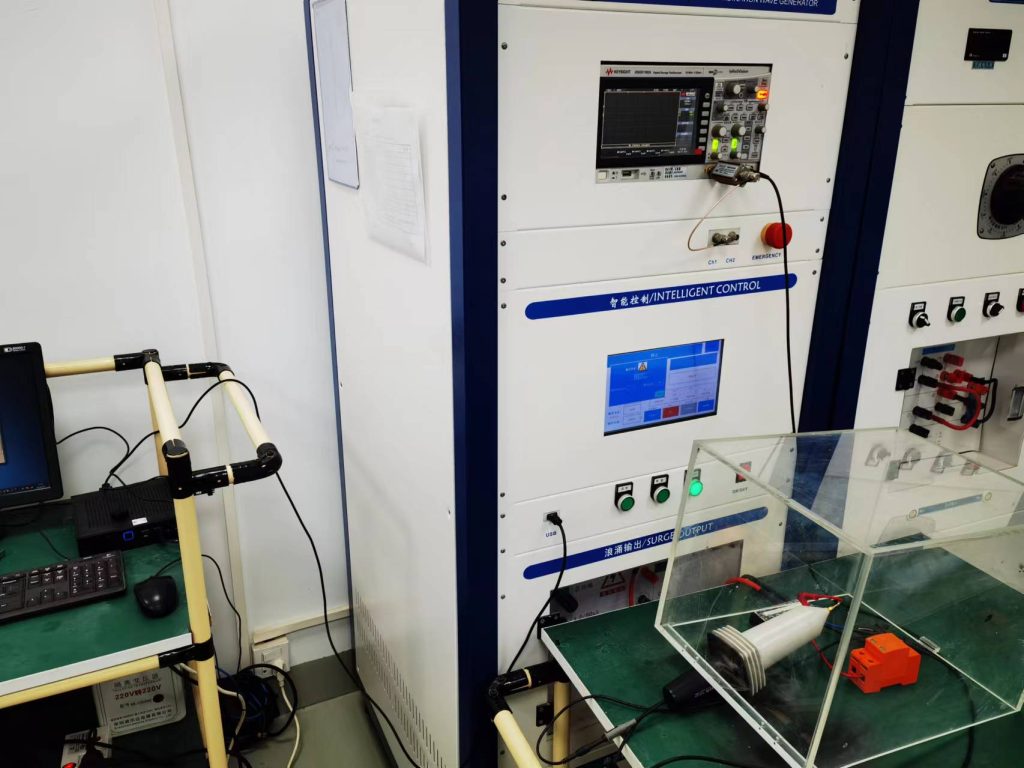

Simulated Lightning Impact Test

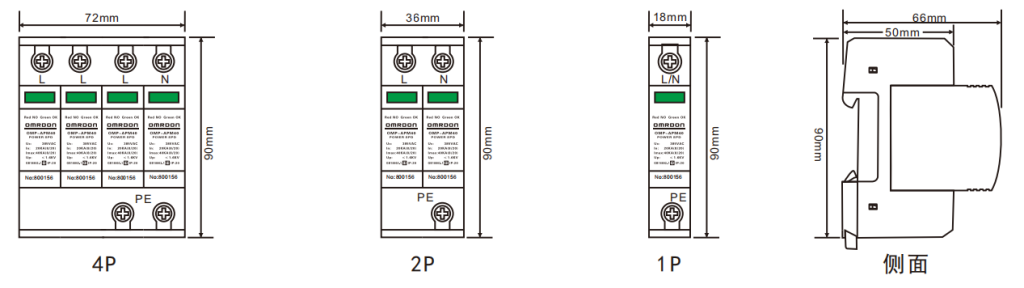

Product Dimension Drawing
Installation Precautions
1, surge protectors installed in parallel in the line, and remember.
2. Do not connect the line in reverse or wrong.
3, surge protector installed in the front of the protected equipment the closer the better.
4. The equipment needs to be inspected regularly, and the product must be replaced immediately after deterioration.
5. Remember not to work with electricity.
